Vibration Testing Machine , Lithium Battery Safety Test Machine Frequency 3000Hz

Name: Vibration Testing Machine Lithium Battery Safety Test Machine Frequency 3000Hz
Brand: LABTONE
Price: 1 USD

Buy cheap Vibration Testing Machine , Lithium Battery Safety Test Machine Frequency 3000Hz product

Brand Name : LABTONE

Model Number : EV203

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1set

Delivery Time : 45 working days

Packaging Details : International Wooden case

Sine Force : 300kg.f(3kN)

Random Force : 300kg.f(3kN)

Shock Froce : 600kg.f(6kN)

Displacement : 40mm

Max acceleration : 100g

Payload : 120kg

Max.Velocity : 2.0 m/s

Name : Vibration Testing Machine, Lithium Battery Safety Test Machine Frequency 3000Hz

Contact Now

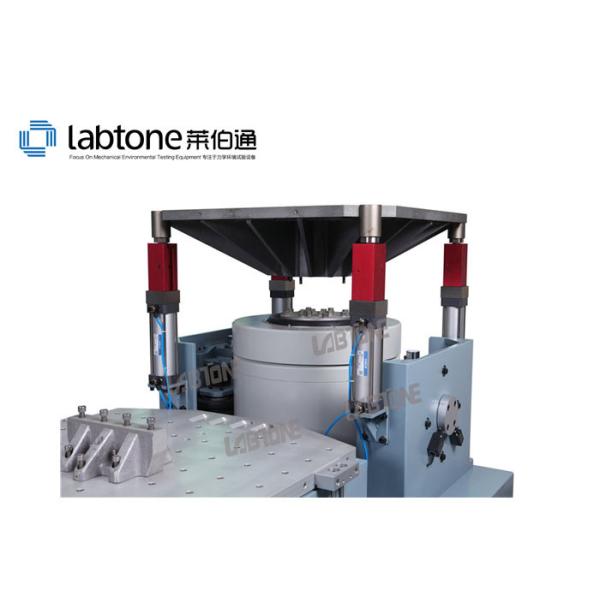

Vibration Testing Machine, Lithium Battery Safety Test Machine Frequency 3000Hz

Vibration Test Machine Main Features

Long time operation

Low Maintenance

Up to 40mm displacement

Automatic centering of the armature

Trunnion with vibration isolators

Meet MIL-STD, DIN, ISO, ASTM,IEC,ISTA,JIS,BS.GB and other international standards

Vibration Test Machine Capabilities

Sine: 300 kgf (peak)
Random: 300 kgf (rms)
Shock: 600 kgf (peak)
Frequency range: 2 Hz to 3000 kHz
Maximum Velocity: 2.0m/s
Maximum Acceleration: 100 G (half sine) with a bare armature
Maximum payload: 120 kg
Maximum displacement: Shock: 40 mm (p-p)

Vibration Test Machine Specification:

Model	EV103	EV203	EV106	EV206	EV210	EV220
Frequency(Hz)	2-4000	2-2500	2-3000	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	300	600	600	1000	2000
Max. Displacement (mmp-p)	25	38	25	50	50	50
Max. Acceleration(g)	100	100	100	100	100	100
Max. Velocity(cm/s)	200	120	180	200	200	200
Payload(kg)	110	120	200	200	300	400
Armature Mass(kg)	3	3	6	6	10	20
Armature Diameter(mm)	φ150	φ150	φ200	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	460	720	920	1100	1600
Vibration Generator Dimension LWH(MM)	750560670	750555670	800600710	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp3k	Amp6k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	250	320	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	8	9	18	20	25	35

Vibration Test Machine Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales Service

Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.

Our workshop:

Vibration Testing Machine , Lithium Battery Safety Test Machine Frequency 3000Hz

Installation picture

Vibration Testing Machine , Lithium Battery Safety Test Machine Frequency 3000Hz
